Chứng nhận:
ISO9001, CE, CCC, RoHS, VDE, Is013458

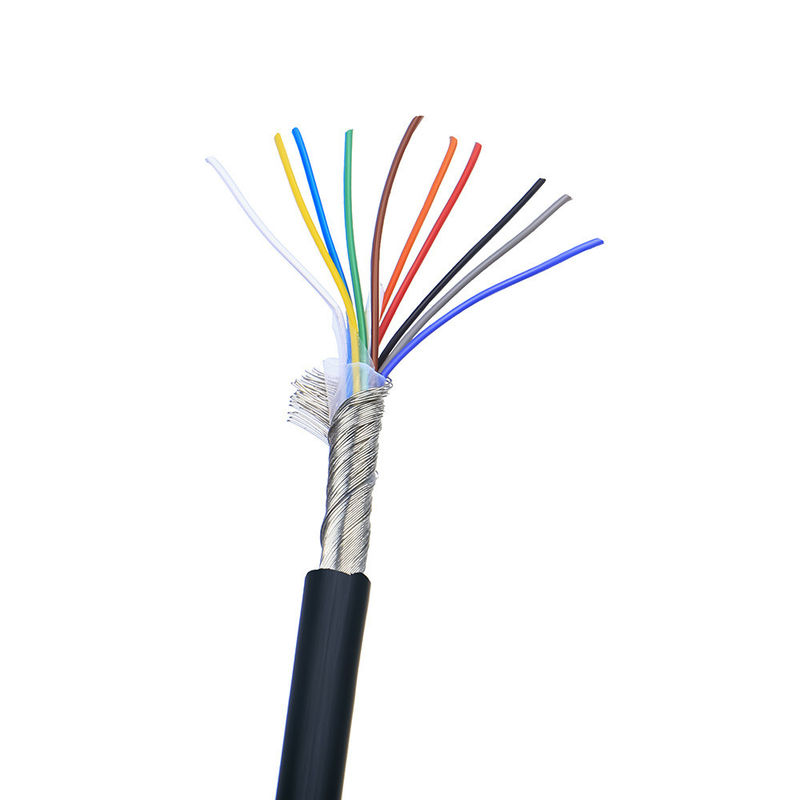

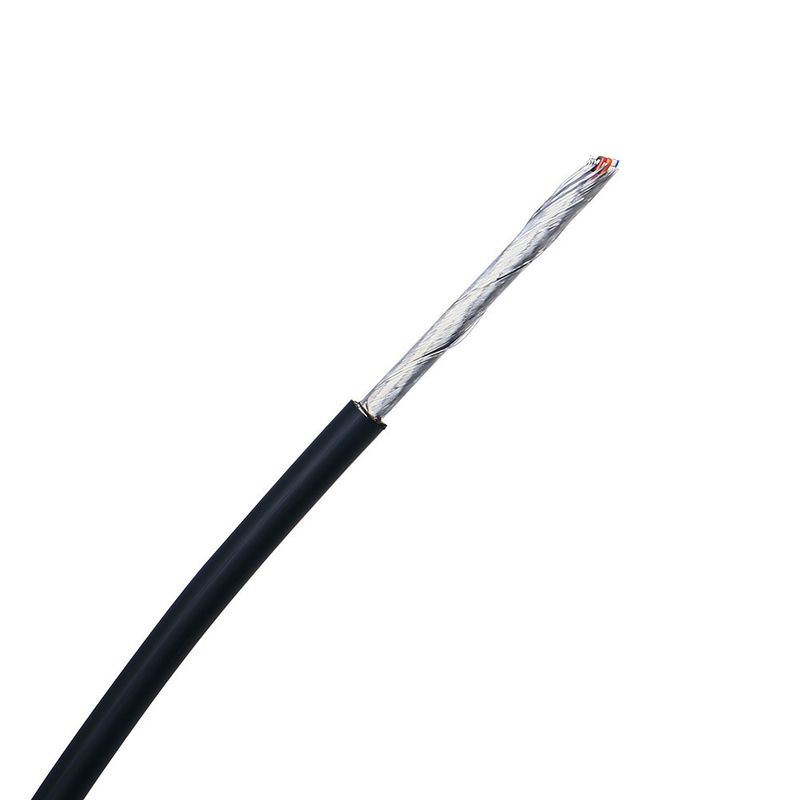

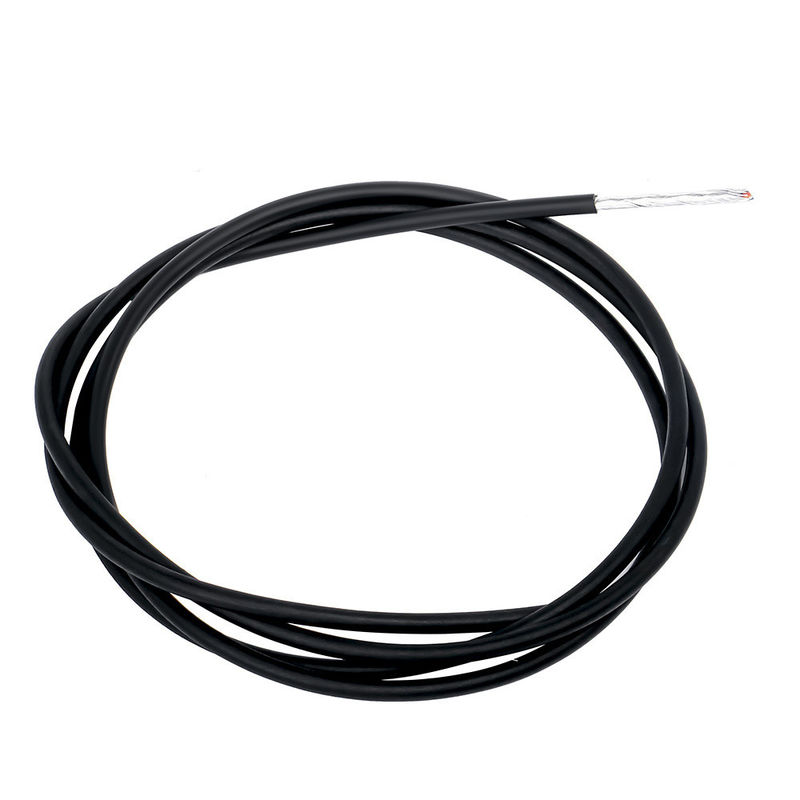

| item | lan cable |
| Place of Origin | China |
| | Guangdong |
| Brand Name | SMT,OEM |
| Number of Conductors | 8 |
| Product name | cat5e cat6 cat6a cat7 cat8 Lan Cable |
| Shield | Al Foil+braiding/Unshielded Twisted Pair |
| Conductor | Bare Copper,CCA,CCS,HCCA,CCAG |
| Number of Conductor | 8 |
| Jacket Material | PE PVC LSZH HDPE |
| Connector | RJ45 8P8C Gold-plated |
| Keyword | Network Lan Cables |
| Color | Customized |
| Payment | T/T |
| Frequency (MHZ) | Return loss(dB) | Attenuation (dB/100m) | NEXT (dB) | ACR (dB) | PSNEXT (dB) | ELEFXT (dB/100m) | PSELEXT (dB/100m) | Delay (ns/100m) |
| 0.772 | 19.4 | 1.8 | 67 | 65 | 64 | 66 | 63 | 575.0 |
| 1.0 | 20.0 | 2.0 | 65.3 | 63.0 | 62.3 | 63.8 | 60.8 | 570.0 |
| 4.0 | 21.0 | 4.1 | 56.3 | 52.0 | 53.3 | 51.7 | 48.7 | 552.0 |
| 8.0 | 24.5 | 5.8 | 51.8 | 46.0 | 48.8 | 45.7 | 42.7 | 546.7 |
| 10.0 | 25.0 | 6.5 | 50.3 | 44.0 | 47.3 | 43.8 | 40.8 | 546.4 |
| 16.0 | 25.0 | 8.2 | 47.3 | 39.0 | 44.3 | 39.7 | 36.7 | 543.0 |
| 20.0 | 25.0 | 9.3 | 45.8 | 37.0 | 42.8 | 37.7 | 34.7 | 542.0 |
| 25.0 | 24.3 | 10.4 | 44.3 | 34.0 | 41.3 | 35.8 | 32.8 | 541.2 |
| 31.25 | 23.6 | 11.7 | 42.9 | 31.0 | 39.9 | 33.9 | 30.9 | 540.4 |
| 62.5 | 21.5 | 17 | 38.4 | 21.0 | 35.4 | 27.8 | 24.8 | 438.6 |
| 100.0 | 20.1 | 22 | 36.3 | 13.0 | 32.3 | 23.8 | 20.8 | 537.6 |
| Frequency (MHZ) | Return loss(dB) | Attenuation (dB/100m) | NEXT (dB) | ACR (dB) | PSNEXT (dB) | ELEFXT (dB/100m) | PSELEXT (dB/100m) | Delay (ns/100m) |
| 0.772 | 19.4 | 1.8 | 76.0 | 74.0 | 74.0 | 70.0 | 67.0 | 575.0 |
| 1.0 | 20.0 | 2.0 | 74.3 | 72.0 | 72.3 | 67.8 | 64.8 | 570.0 |
| 4.0 | 23.0 | 3.8 | 65.5 | 61.0 | 63.3 | 55.8 | 52.8 | 552.0 |
| 8.0 | 24.5 | 5.3 | 60.8 | 55.0 | 58.8 | 49.7 | 46.7 | 546.7 |
| 10.0 | 25.0 | 6.0 | 59.3 | 53.0 | 57.3 | 47.8 | 44.8 | 545.4 |
| 16.0 | 25.0 | 7.6 | 56.2 | 49.0 | 54.2 | 43.7 | 40.7 | 543.0 |
| 20.0 | 25.0 | 8.5 | 54.8 | 46.0 | 52.8 | 41.8 | 38.8 | 542.0 |
| 25.0 | 24.3 | 9.5 | 53.3 | 44.0 | 51.3 | 39.8 | 36.8 | 541.2 |
| 31.25 | 23.6 | 10.7 | 51.9 | 41.0 | 49.9 | 37.9 | 34.9 | 540.4 |
| 62.5 | 21.5 | 15.4 | 47.4 | 32.0 | 45.4 | 31.9 | 28.9 | 538.6 |
| 100.0 | 20.1 | 19.8 | 44.3 | 24.5 | 42.3 | 27.8 | 24.8 | 537.6 |
| 200.0 | 18.0 | 29.0 | 39.8 | 10.8 | 37.8 | 21.8 | 18.8 | 536.5 |
| 250.0 | 17.3 | 32.8 | 38.3 | 5.5 | 36.3 | 19.8 | 16.8 | 536.3 |
| Frequency(MHZ) | Attenuation(dB/100meter at 20ºC), Max | Next(dB),Min | Power Sum(dB),Min |
| 1MHz | ----- | 65* | 62* |
| 4.0 | 4.1* | 56* | 53* |
| 8.0 | 5.8* | 51* | 48* |
| 10.0 | 6.5* | 50* | 47* |
| 16.0 | 8.2* | 47* | 44* |
| 20.0 | 9.3* | 45* | 42* |
| 25.0 | 10.4* | 44* | 41* |
| 31.25 | 11.7* | 42* | 39* |
| 62.5 | 17.0* | 38* | 35* |
| 100.0 | 22.0* | 35* | 32* |
| 125.0 | 25.0* | 34* | 31* |
| Frequency(MHZ) | Attenuation(dB/100meter at20ºC),Max | Next(dB),Min | Power Sum(dB),Min |
| 0.772 | ----- | 67* | 64* |
| 1.0 | ----- | 65* | 62* |
| 4.0 | 6.4* | 56* | 53* |
| 8.0 | 8.9* | 51* | 48* |
| 10.0 | 9.9* | 50* | 47* |
| 16.0 | 12.3* | 47* | 44* |
| 20.0 | 13.8* | 45* | 42* |
| 25.0 | 16.0* | 44* | 41* |
| 31.25 | 17.1* | 42* | 39* |
| 62.5 | 25.6* | 38* | 35* |
| 100.0 | 100MHz | 33* | 32* |
| 125.0 | 37.4* | 34* | 31* |
| Frequency(MHZ) | Attenuation(dB/100meter at20ºC),Max | Next(dB),Min | Power Sum(dB),Min |
| 1 | 2.0* | 80.0* | 77.0* |
| 4 | 3.7* | 80.0* | 77.0* |
| 10 | 5.9* | 80.0* | 77.0* |
| 16 | 7.4* | 80.0* | 77.0* |
| 20 | 8.3* | 80.0* | 77.0* |
| 31.25 | 10.4* | 80.0* | 77.0* |
| 62.5 | 14.9* | 75.5* | 72.5* |
| 100 | 19.0* | 72.4* | 69.4* |
| 155 | 24.0* | 69.5* | 66.5* |
| 200 | 27.5* | 67.9* | 64.9* |
| 300 | 34.2* | 65.2* | 62.2* |
| 600 | 50.10* | 60.7* | 57.7* |
we are a leading cable supplier in China, who specialized in measuring & control devices cable, medical equipment cable, automotive & rail transit cable, wind & solar energy cable, alarm & security cable, conveyor and elevators cable, conveyors & cranes cable, communications & coaxial cable's R&D and production.
In the past over 10 years, we've been focusing on technical researching, production and marketing of wire and cable. And provide the best cables and various cable custom solutions for customers from world wide. You always can get a suitable cable or cable custom service for your product or application from Linke Cable.
CNR- Appliance Wiring Material,Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
